Basic Vlans and Trunks Part 1

                  Basic Vlans and Trunks Part 1

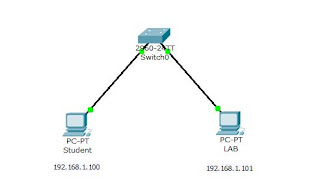

1.      Take two systems and one switch. (Change system name as LAB and another one as Student)

3.      Connect two systems to switch through Straight cable.

4.      Connect (System) LAB to switch port 5.

5.      Connect another (system) Student to switch port 6.

6.      Configure both system IP as (192.168.1.100    192.168.1.101).

7.      Now try to ping from one system to another.

8.      Now we need to configure vlans.

9.      Single click on switch and select CLI (IOS command line interface).

        Switch>

       Switch >enable

       Switch#config terminal

       Switch (config) # vlan 50

       Switch (config –vlan)#name student    ( Now vlan 50 has changed to vlan Student)

       Switch (config –vlan)#vlan 99

       Switch (config –vlan)#name LAB           (Now vlan 99 has changed to vlan LAB)

       Switch (config –vlan)#exit

       Switch (config)#exit

       Switch#        (Vlans are modified)

       Change switch fastethernet ports to vlans according to our systems.

       Switch# configure terminal

       Switch (config) # interface fastEthernet 0/5

       Switch (config-if)# switchport mode access

       Switch (config-if)# switchport access vlan 50

       Switch (config-if)# exit

       Switch# configure terminal

       Switch (config) # interface fastEthernet 0/6

       Switch (config-if)# switchport mode access

       Switch (config-if)# switchport access vlan 99.

       Switch (config-if)# exit

       Switch#

10.   Now try to ping from one computer to another computer, it will show Request time out

But both systems can access internet. Both are in different vlans in same switch.

If any clarification please mail to ccnalab06@gmail.com   (Zerosix)
